Name: Testo 557s AC Manifold Gauge Set – AC Recharge Kit with 2 x 115i Pipe Clamp Thermometer, 1 x 552i Micron Gauge - Set with Bluetooth
SKU: 631075

VERSATILE; The vacuum gauge replaces multiple HVAC gauges and was developed to deliver extremely precise temperature, pressure, and vacuum measurements on refrigerant systems and heat pumps
USER-FRIENDLY; With its intuitive menu, 4-way valve block and automated probe connection, the manometer provides convenient pressure measurement in areas that are difficult to access
WIDE RANGE; The micron gauge offers reliable temperature measuring range of -58° to 302 °F / -50 to 150 °C, pressure measuring range of -15 to 870 psi / -1 to 60 bar, and vacuum measuring range of 0 to 20000 micron
PRECISE; Thanks to the sensitive sensors, the vacuum gauge provides temperature accuracy of -0.9 °F / -0.5 °C, pressure measurement accuracy -0.5 % of full-scale value, and vacuum measurement accuracy - (10 micron 10 % of mv) (100 to 1000 micron)
SMART APP; Take advantage of clearly visualized documentation from a smartphone or tablet. Remotely operate your refrigerant gauge, execute service and maintenance tasks, and send results directly from the job site

testo 557s testo gauges hvac - Remote and accurate measurements of pressure, vacuum and pipe temperature

The testo 557s ac recovery machine is the life-saving tool for every HVAC technician. It replaces a number of tools in the A/C and refrigeration industry and measures pressure, temperature and superheating as well as subcooling fast and reliably. Thanks to its smart Bluetooth integration, data can be measured, stored and evaluated reliably and efficiently from afar, thus saving precious time and resources.

Technical Data:
Temperature measuring range: -58° to 302°F / - 50° to 150°C
Temperature measurement accuracy: -0.9 °F / -0.5 °C
Temperature measurement resolution: 32.2 °F / 0.1 °C
Pressure measuring range: -15 to 870 psi / -1 to 60 bar
Pressure measurement accuracy: -0.5 % of full-scale value
Pressure overload relay: 943 psi / 65 bar
Vacuum measuring range: 0 to 20000 micron
Battery life: 50 hours
Battery type: 2 x AA
Measuring range: 0.5 sec
Weight: 18 oz. / 500 g

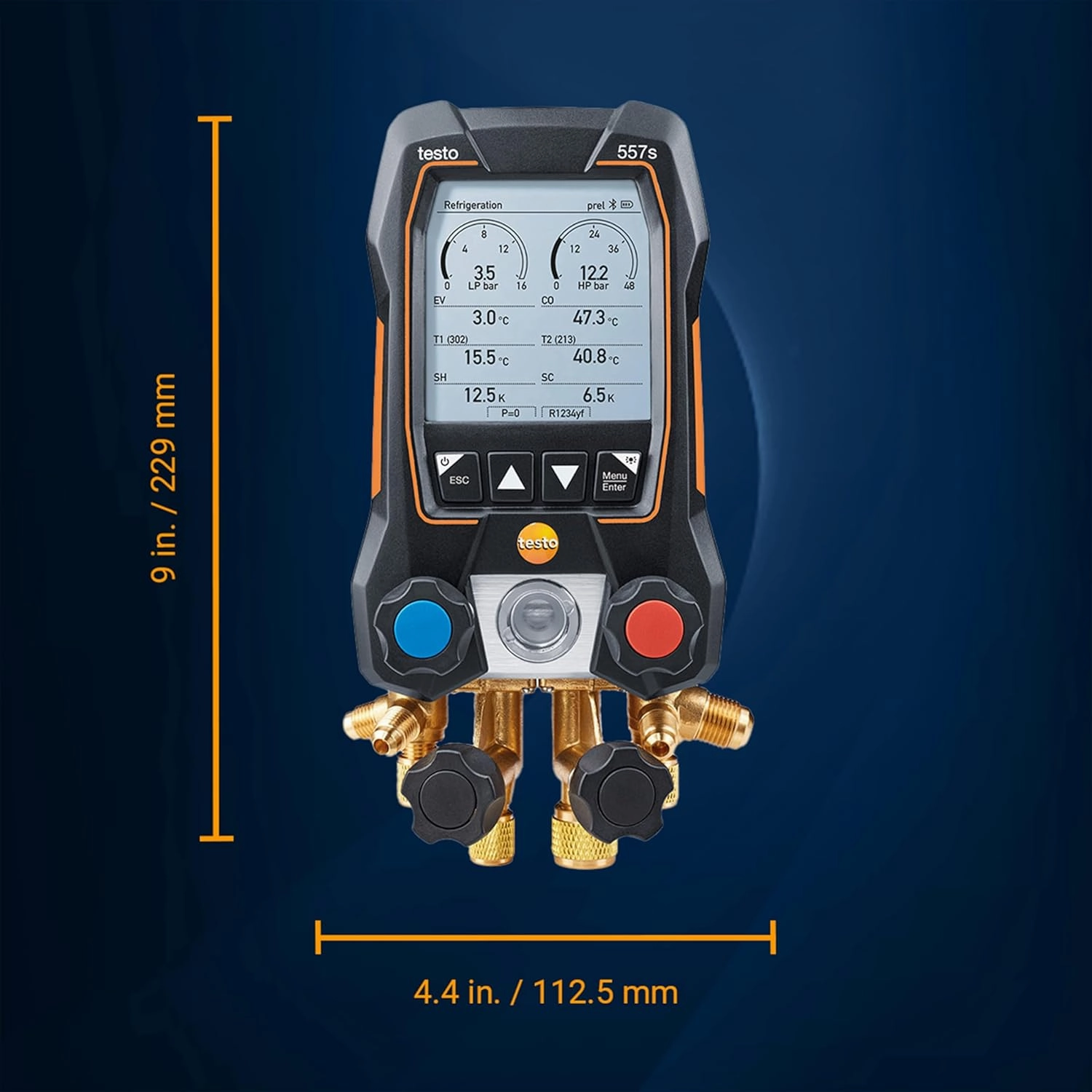

Dimensions: 6 x 4 x 2 in. / 160 x 110 x 50 mm
Hoses: Length: 5 ft. / 1,52 m
System requirements: requires iOS 11 or higher; requires Android 6 or higher; requires mobile end device with Bluetooth 4.0

Scope of delivery:

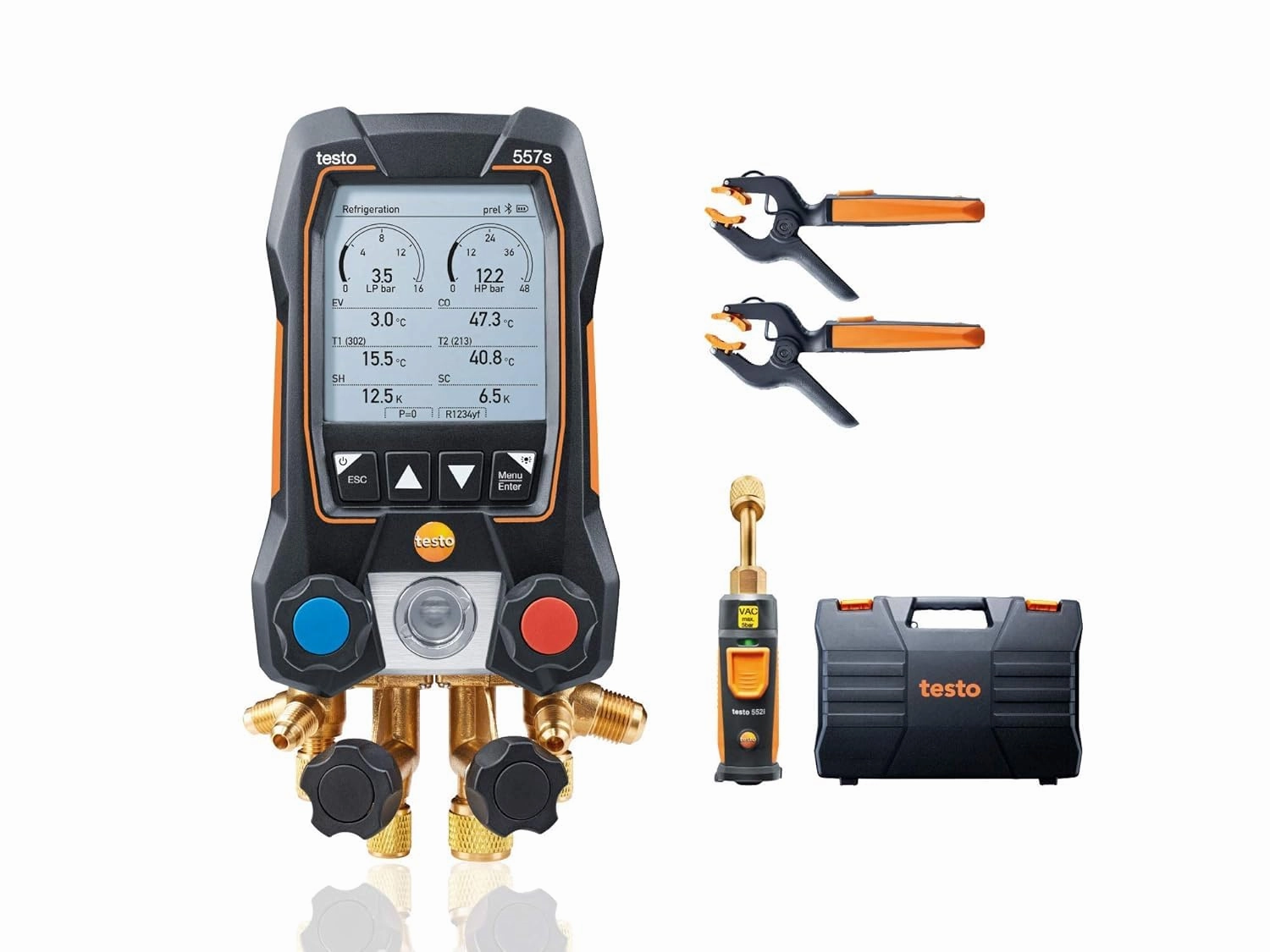

1 x Testo 557s Manifold with 2 x 115i Pipe Clamp thermometer, 1 x 552i Micron Gauge (4 x hoses with optional Kit) Transport case, Instruction manuals

Product Dimensions ‏ : ‎ 9 x 4.8 x 2.8 inches; 2.7 Pounds
Batteries ‏ : ‎ 9 AAA batteries required. (included)
Date First Available ‏ : ‎ January 25, 2021
Manufacturer ‏ : ‎ Testo SE & Co. KGaA
Country of Origin ‏ : ‎ China

Testo 557s AC Manifold Gauge Set – AC Recharge Kit with 2 x 115i Pipe Clamp Thermometer, 1 x 552i Micron Gauge - Set with Bluetooth

Product Details
