- A full, wide-band RF solution for those interested in getting started with software defined radio and with a keen interest in HF bands. Frequency range is 300Hz-2.3GHz (with a frequency gap near 1.1GHz)
- The NESDR SMArt XTR HF Bundle utilizes a well-designed upconverter--the Ham It Up Plus v2--to receive HF, instead of utilizing a direct sampling hack as with most other low cost HF SDRs. This results in a vastly different HF experience--much better performance, and no loss of gain controls
- Included is a Ham It Up Plus v2 upconverter, installed in a custom black aluminum enclosure; an NESDR SMArt XTR RTL-SDR, 3 antennas, an impedance matching balun for longwire and dipole antennas, and interconnect adapters and cables
- Only available for a limited time! Due to the frequency gap this is NOT recommended for ADS-B. Instead try our NESDR SMArt HF Bundle (Amazon product code B0747PX3NZ)
For full product details and specifications, please visit the product pages at nooelec.com

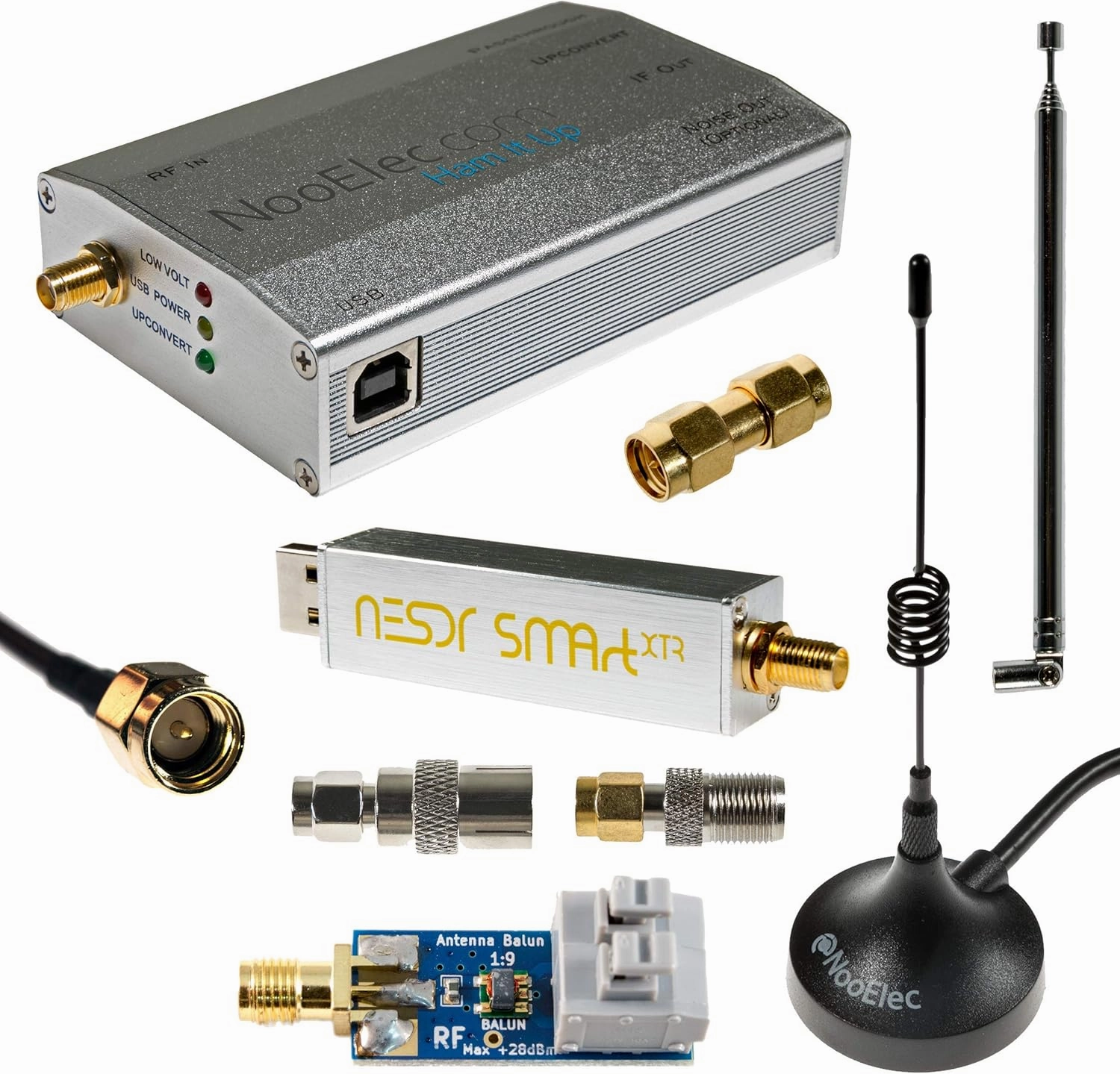

Included:
- Ham It Up Plus upconverter, assembled in silver aluminum enclosure. Free assembled noise source circuit which can be used for all sorts of RF testing applications!
- NESDR SMArt XTR SDR bundle including custom antenna base w/ low-loss RG-58 cable & 3 antenna masts
- Balun One Nine v1 antenna balun for longwire and dipole HF antennas
- Male SMA to male SMA pigtail cable, 15cm, w/ RG-316 cable
- Male SMA to male SMA barrel adapter
- Male SMA to female F-connector (US TV connector) adapter
- Male SMA to female Belling-Lee (EU TV connector) "PAL" adapter
Ham It Up Operation:
- Connect your antenna to the RF input
- Connect your SDR to the IF output
- Ensure your toggle switch is in the enable position
- Plug your USB power source into the USB-B USB jack
- Fire up your favorite SDR software. Tune to 125MHz ( /- the tuning offset from the tuning procedure) your desired frequency and enjoy!
