- (HARD DRIVE NOT INCLUDED) S.h.i.p. from. U.S. ware-house. This NVR: DS-7732NXI-I4/16P/S from Hik-vision factory, Upgraded and enhanced model of DS-7732NI-I4/16P, International English Version, support upgrade firmware. We provide 2-year warranty and life-t-ime support for users. If you have any needs, please do not hesitate to contact us at any time. (Warm tips: This NVR only have 16 PoE interfaces. If your camera is already active in use, it is recommended that you reset the camera before connecting to the new NVR.)

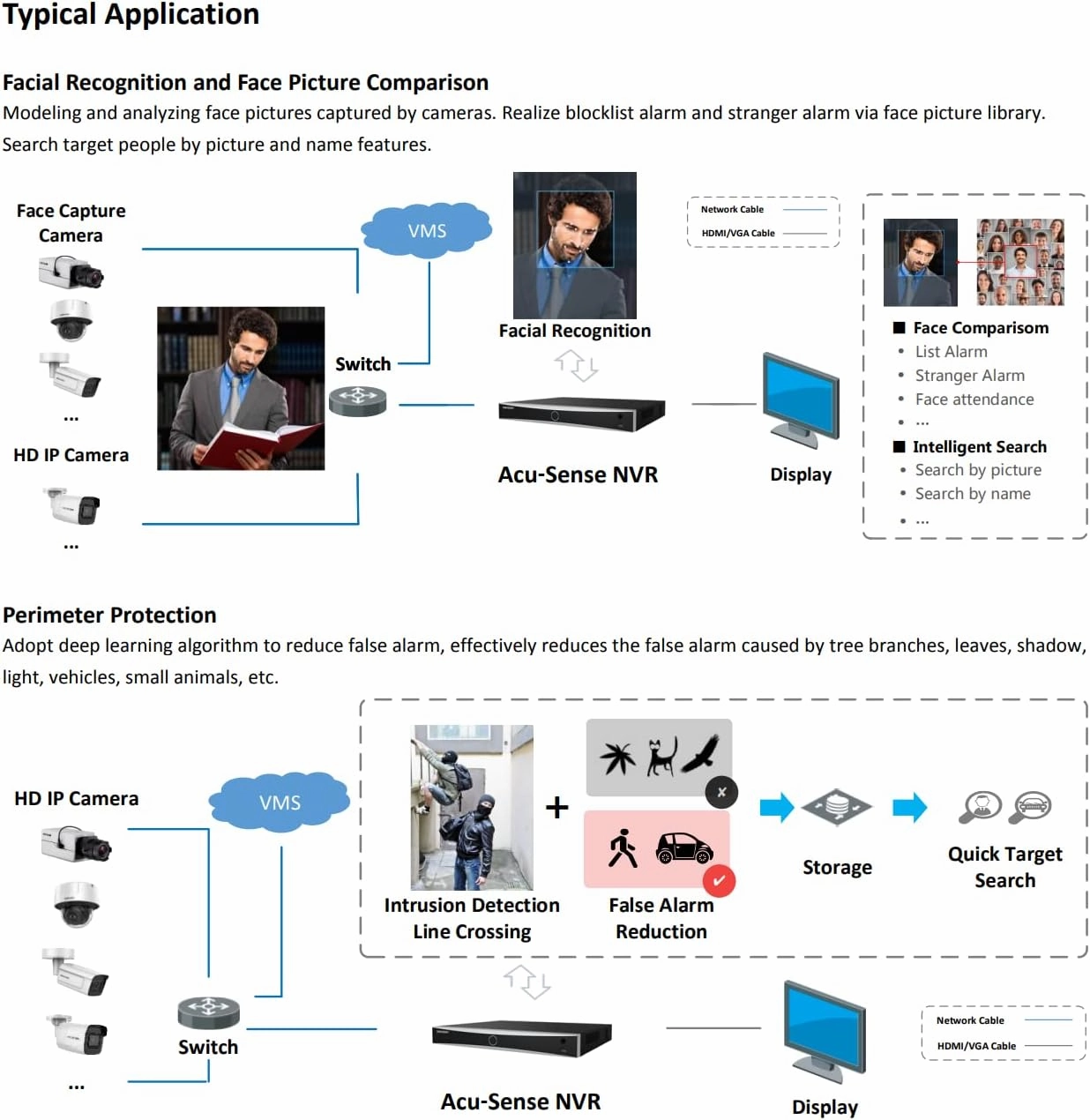

- Intelligent Detection: The latest deep learning algorithm classifies moving targets to focus on alarms caused by people and vehicles, reducing 95% of false alarms caused by other moving objects such as animals, falling leaves, etc. Built-in Video Content Analysis(VCA) algorithmfor more efficient monitoring as well as more effective perimeter protection, such as Line crossing detection, intrusion detection. Up to 4-ch perimeter protection. (Please refer to the below user manual to set up the NVR)
- Facial Recognition: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB). 4-ch face picture comparison alarm. Support facial detection and analytics: face picture comparison, human face capture, face picture search, 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265). Up to 4-ch facial recognition for video stream; Up to 8-ch facial recognition for face picture.
- Up to 4K high-definition live view, storage and playback. Up to 16-ch @ 1080p (30 fps) decoding capability. Smart search for the selected area in the video, and smart playback to improve the playback efficiency. POS information overlay on live view and playback; POS triggered recording and alarm. Provides highly configurable Home/Business Surveillance Live View, Storage, and Playback system solution, more with no monthly fees.
- Up to 32-ch IP camera inputs, plug & play with 16 power-overEthernet (PoE) interfaces. Up to 256 Mbps incoming bandwidth. H.265 /H.265/H.264 /H.264 video formats. Provide independent HDMI and VGA outputs, HDMI video output at up to 4K resolution. 4 SATA interfaces for HDD connection (up to 10 TB capacity per HDD, HDD Not Include). Up to 12MP resolution input. Adopt Hik-vision Acu-sense technology to minimize manual effort and security costs.
DS-7732NXI-I4/16P/S 32 Channel 1.5U 16 PoE 4K Acu-Sense NVR
Key Feature
Intelligent analytics based on deep learning algorithm
Up to 32-ch IP camera inputs
H.265 /H.265/H.264 /H.264 video formats
Up to 16-ch 1080p decoding capability
Up to 256 Mbps incoming bandwidth
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Compression and Recording
H.265 compression effectively reduces the storage space by up to 75%
Adopt stream over TLS encryption technology which provides more secure stream transmission service
Support double verification for playback and downloading
Storage and Playback
Up to 4 SATA interfaces for HDD connection
16-ch synchronous playback
Smart & POS Function
Support multiple VCA (Video Content Analytics) events

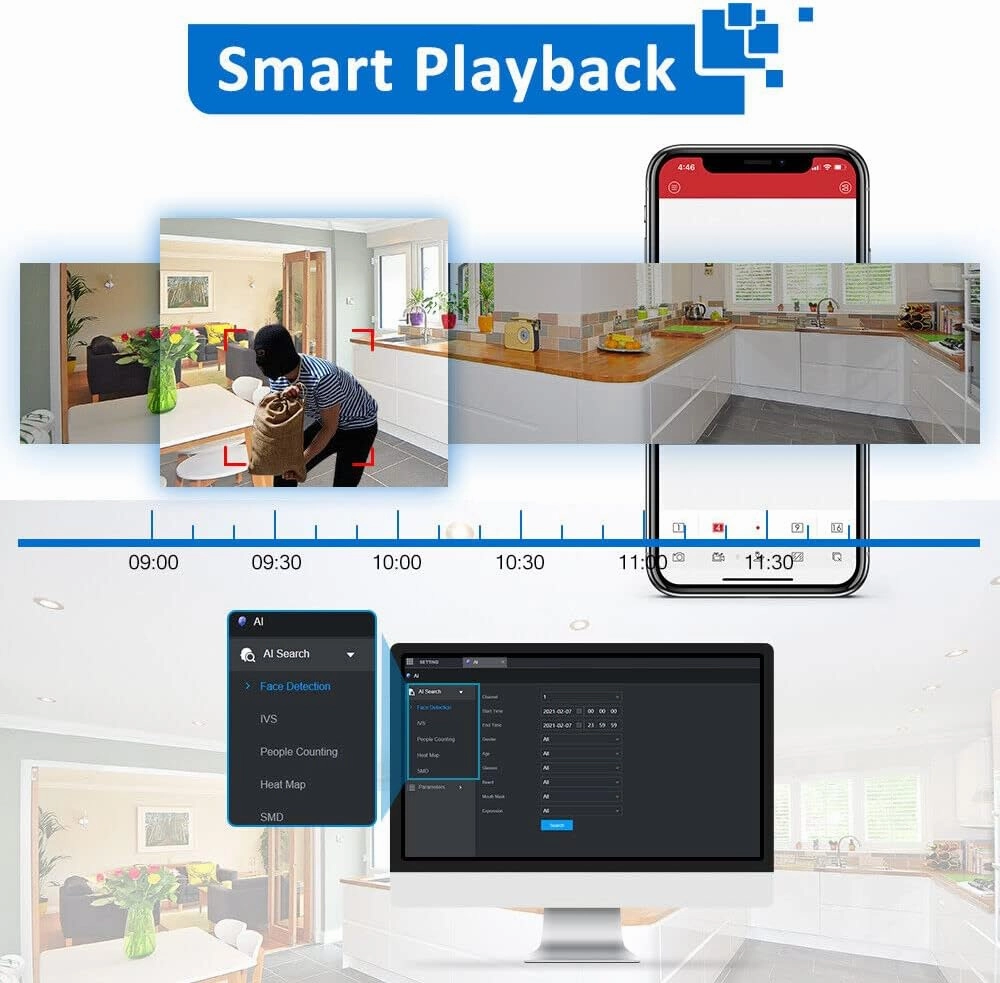

Smart search for the selected area in the video, and smart playback to improve the playback efficiency
POS information overlay on live view and playback
POS triggered recording and alarm
Network & Ethernet Access
16 independent PoE network interfaces
1 self-adaptive 10/100/1000 Mbps Ethernet interface

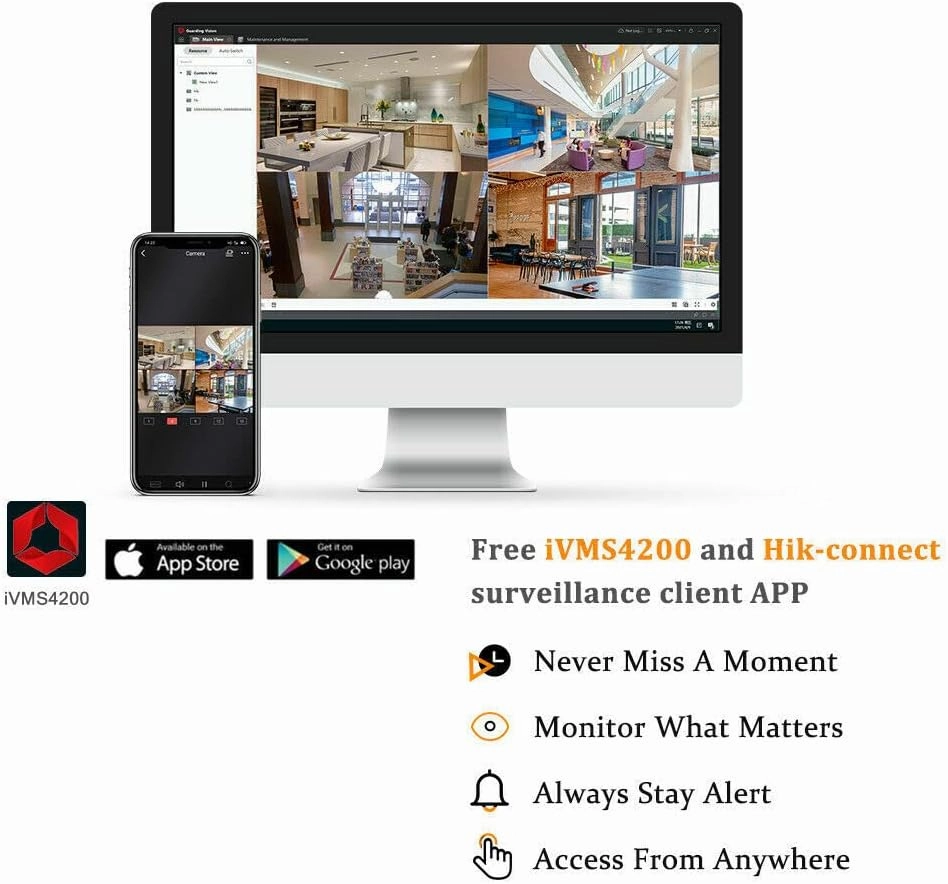

Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Smooth streaming technology
Support web access without plug-in
Interface
Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
1 eSATA interface
Alarm In/Out: 16/4
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Warm tips:

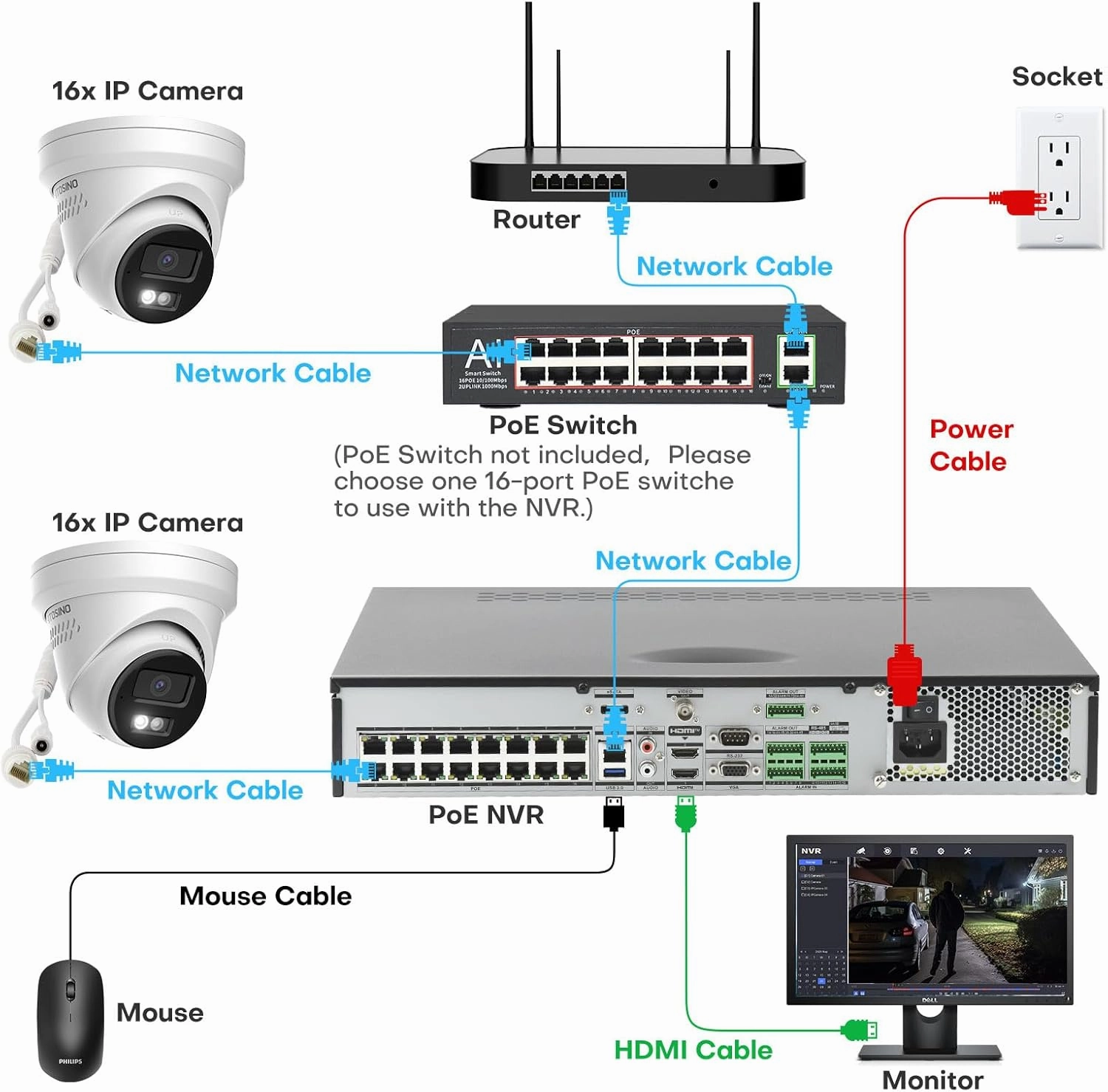

This NVR only has 16 PoE interfaces, if you need to connect more than 16 cameras, please purchase a separate PoE switch to use together! (PoE switch is not included)
