AT AVRISP mkII compliant

- Compatible with AT ADescription
AVR ISP programmer – Compatible with AT AVRISP MKII from Atmel
A professional in system programmer. Supports all AVR devices with ISP or PDI interface, including XMEGA
Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be
Updated to support other AVR Studio Versions)


Features

Supports all AVR devices with ISP or PDI interface, and certain 51 devices
Programs both Flash and EEPROM
Supports fuses and lock bit programming
Based on at AVRISP MKII firmware
Upgrade able to support future devices
Adjustable ISP programming speed up to 8 m Frequency
USB 2.0 compliant full speed (12Mbps)
3 optional cables to target board
Powered from USB Bus, does not require external power supply

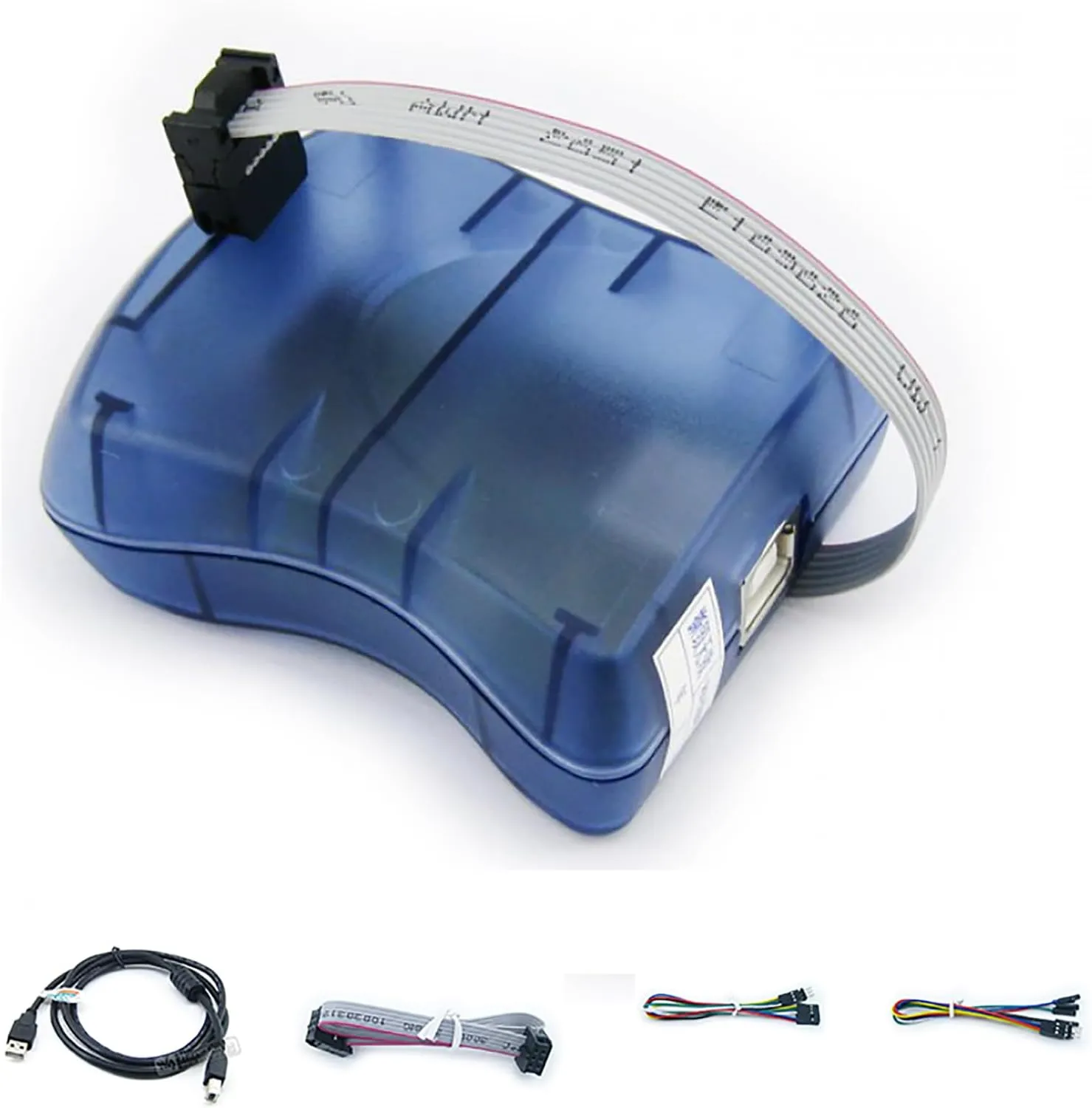

Package Content

Note: The package content is as show on the first picture. Others expansion board and socket not include.


1. USB AVRISP XPII x1
2. USB cablex1
3. 6 pin cable (Spare)x1
4. 6 pin to 10 Pin ISP cable x1
5. 6 wire multi-coloured custom connector cable x1
6. Quick start sheet x1


Development Resources

Wiki: www.waveshare.com/wiki/usb_avrisp_hat_xpii
